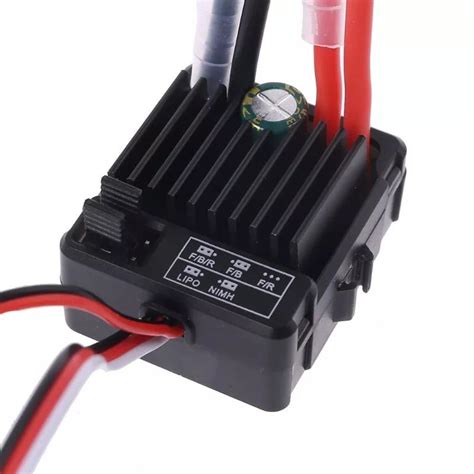

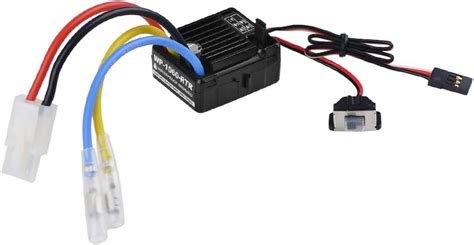

1060 Brushed ESC 60A Waterproof ESC 1:10 RC

- Forward/Brake/Reverse running mode.
- High efficiency design, light weight, Water-proof and dust-proof.
- Easy to set and easy to use the ESC parameters with jumpers and automatic throttle range calibration.
- Great current endurance capability and Great built-in BEC output capacity.

Specification:
- Small size with built-in capacitor module.
- Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.
- Fwd. Cont. / Peak Current: 60A /360A
- Rev. Cont. / Peak Current: 30A /180A
- Voltage Range: 2-3S Lipo or 5-9 NiMH
- Cars Applicable: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank

- 2S Lipo or 6 NiMH
- 540 or 550 Size Motor: ≥12T Or RPM<30000 @7.2V
- 3S Lipo or 9 NiMH
- 540 or 550 Size Motor: ≥18T Or RPM< 20000 @7.2V

- Resistance: Fwd 0.001Ω, Rev 0.002Ω
- BEC Output: 2A/5V (Linear Mode)
- PWM Frequency: 1KHz
- Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
- Net Weight: 36g

Size:34x28x22mm/1.3x1.1x0.9inch
