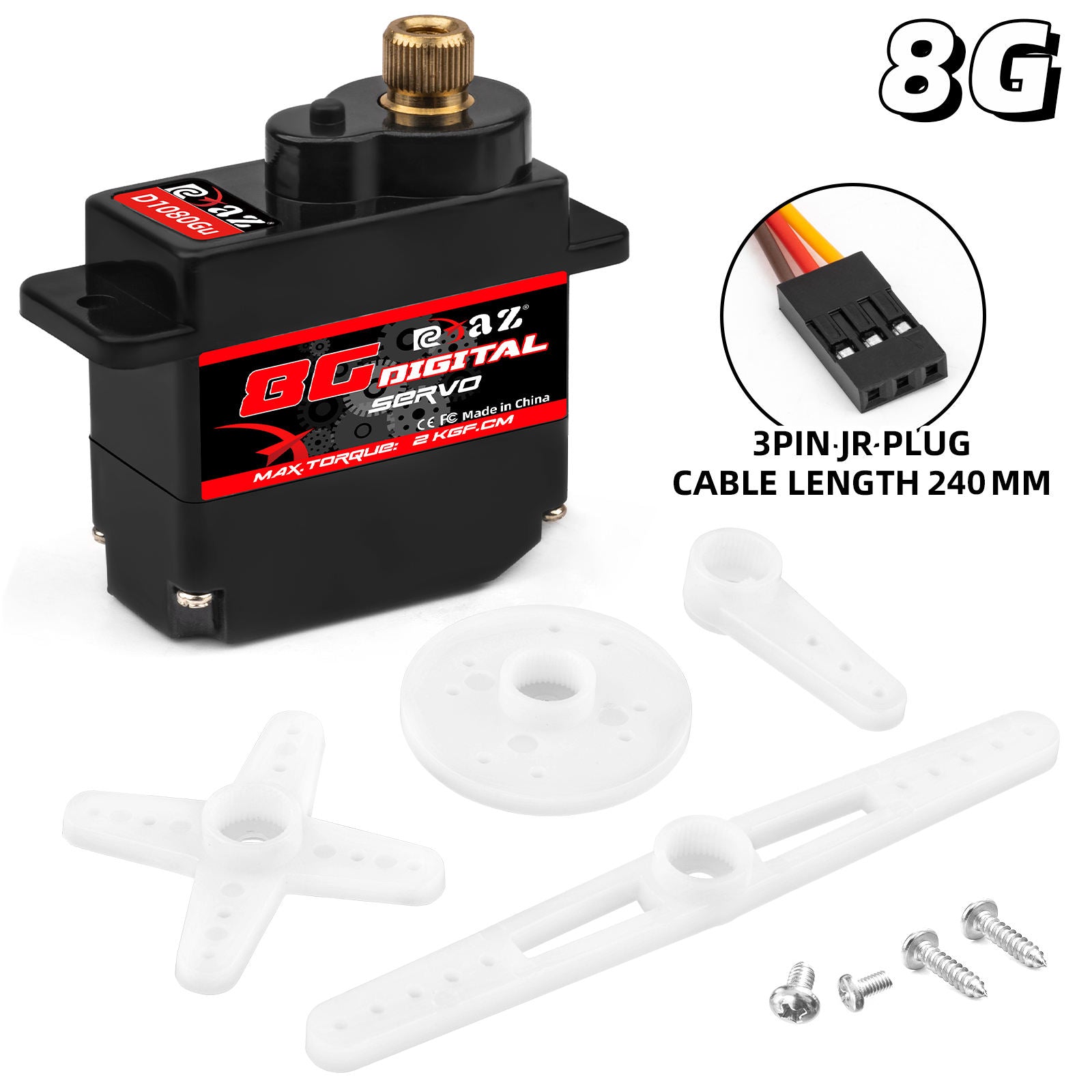

8g Micro Digital Servo JR Plug

8g Micro Digital Servo JR Plug

Operating Voltage : 4.8~6.0V DC Max.

 Torque : 4.8V≥1.10kgf·cm ； 6.0V≥1.40kgf·cm

No Load Speed : 4.8V≤0.14sec/60°; 6.0V≤0.12sec/60°

Stall Current：4.8V≦680mA；6.0V≦780mA

 Consumption Current* (No Load)：4.8V ≦130mA ；6.0V≦150mA

Max. Operating Travel Angle：180°±10°(500~2500μs） D

ead Band Width: ≤ 3us Mechanical Limit Angle: 360°

Motor Type: Coreless motor Case Material: ABS Gear Set Material : Copper gear Weight: 8g
