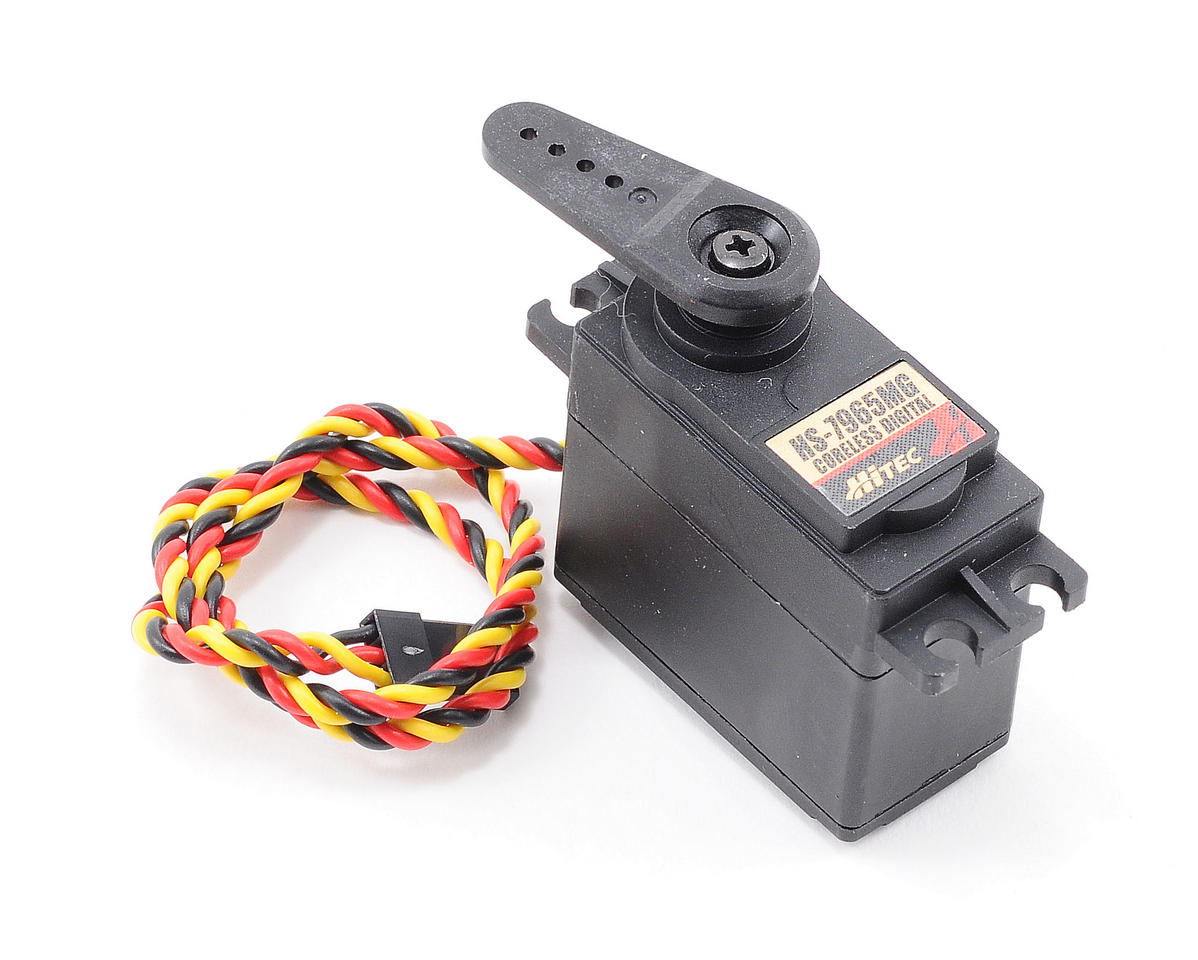

PreOwned Hitec HS-7965MG High Resolution High Speed Servo

Replacing the HS-5965MG, our premium high speed HS-7965MG Digital Servo has the added benefit of our G2 second generation programmable digital circuit. This circuit has twice the resolution of our original circuit while adding programmable overload protection. The technology doesn’t stop at the circuit board, with high performance coreless motors, dual ball bearings, bushing supported gear shafts and our Heavy Duty Metal gear train the HS-7965MG will give you everything you need no matter what the demand.

Key Features:

    G2 Digital Circuit
    Coreless Motor
    Dual Ball Bearing Supported Output Shaft
    Metal Gear Train (MK first gear)
    *** Programmable Features Include: ***
    Dead Band Width
    Direction of Rotation
    Speed of Rotation (slower)
    End Points
    Neutral Points
    Fail Safe On/Off
    Fail Safe Point
    Resolution* (default is high resolution)
    Overload Protection* (default is off)
    *these features are only programable with the HFP-20 (#44430) field programmer

Specifications:

    Size Category: Standard
    Type: Digital
    Torque: 111 oz/in (8.6 kg/cm) @ 4.8V, 139 oz/in (10.4 kg/cm) @ 6V
    Speed: 0.13 sec/60 deg @ 4.8V, 0.10 sec/60 deg @ 6V
    Dimensions (WxLxH): 0.78"x1.57"x1.45"
    Weight: 2.18 oz
    Bushing Or Bearing: Bearing
    Bearing: Dual
    Motor Type: Coreless
    Gear Type: Metal
