The Tinkers Inc. Hobbies
RCXAZ 2s 120A Waterproof Brushless ESC
RCXAZ 2s 120A Waterproof Brushless ESC
Regular price
$44.99 CAD
Regular price
Sale price
$44.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
120A ESC Specifications:
Continuous Current: 120A
Burst Current: 480A / 10sec
Battery: 2s LiPo
BEC output: 5.3V / 5A(Switch Mode)
Plug: T Male
Motor Plug: Female 5mm Bullet Connector
Dimension: Approx. 43 * 31 * 32mm / 1.7 * 1.2 * 1.3inch

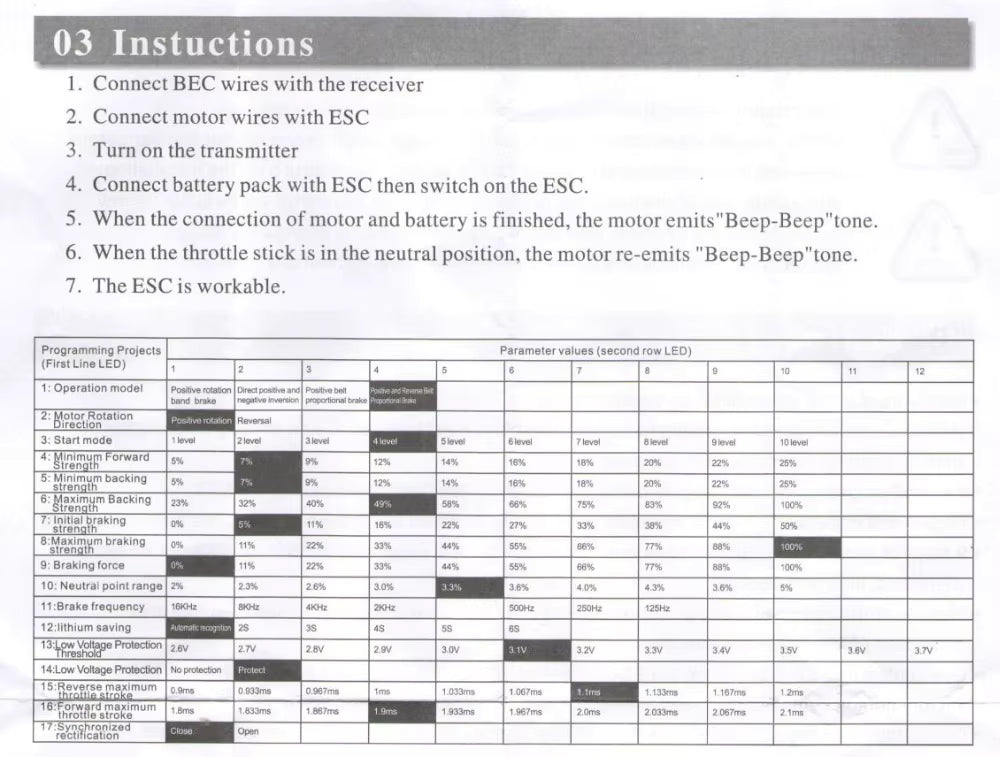

Programable with programming card
Features:
Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off
Start mode:Medium, soft, strong
Max brake force: 25%, 50%, 75%, 100%
Max reverse force: 25%, 50%, 75%, 100%
Neutral range: 6%, 9%, 12%, work state
ESC is only rated to 2s under safe operational parameters. Operation outside of that voltage may cause damage.
