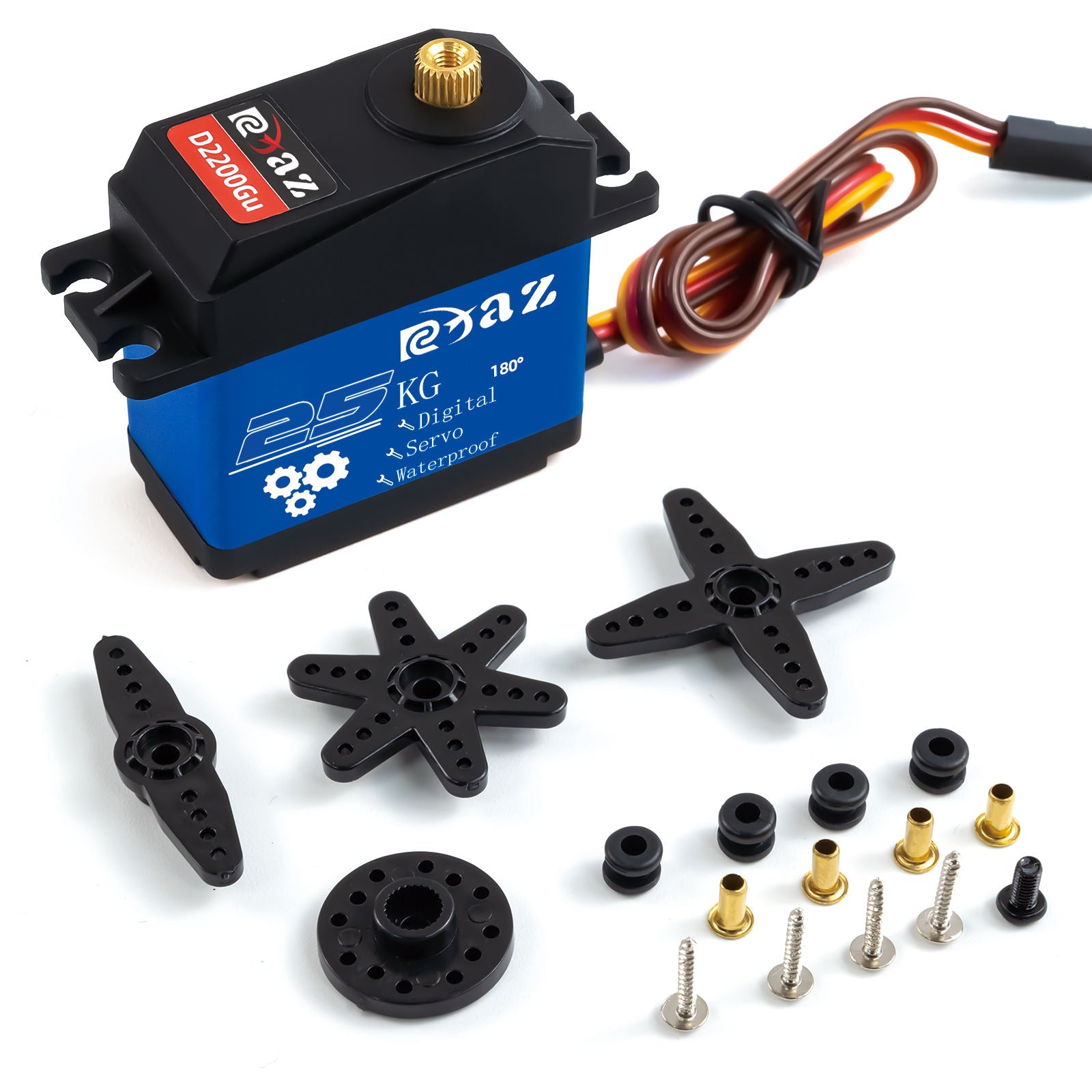

RCXAZ Metal Gear Digital Servo 25kg

1x digital servo
1x accessory bag

Waterproof grade: IP66

Mechanical Specification:
1. Size: 54.2×20×46 mm
2. Weight: 60g±2g
3. Limit angle: 180°
4.Bearing: 2BB
5.Horn gear spline: 25T   Diameter:5.9mm
6.Case : Engineering plastics+Aluminum alloy
7.Connector wire: 300mm±5mm
8.Motor: Carbon brush motor

Electrical Specification:
1.Working voltage range:  4.8-7.4V DC
2.Command signal: Pulse width modification
3.Amplifier type: Digital controller
4.Pulse width range: 500～2500usec
5.Neutral position: 1500usec
6.Running degree: 180±3°(PWM 500～2500usec)
7.Dead band width: 3 usec
