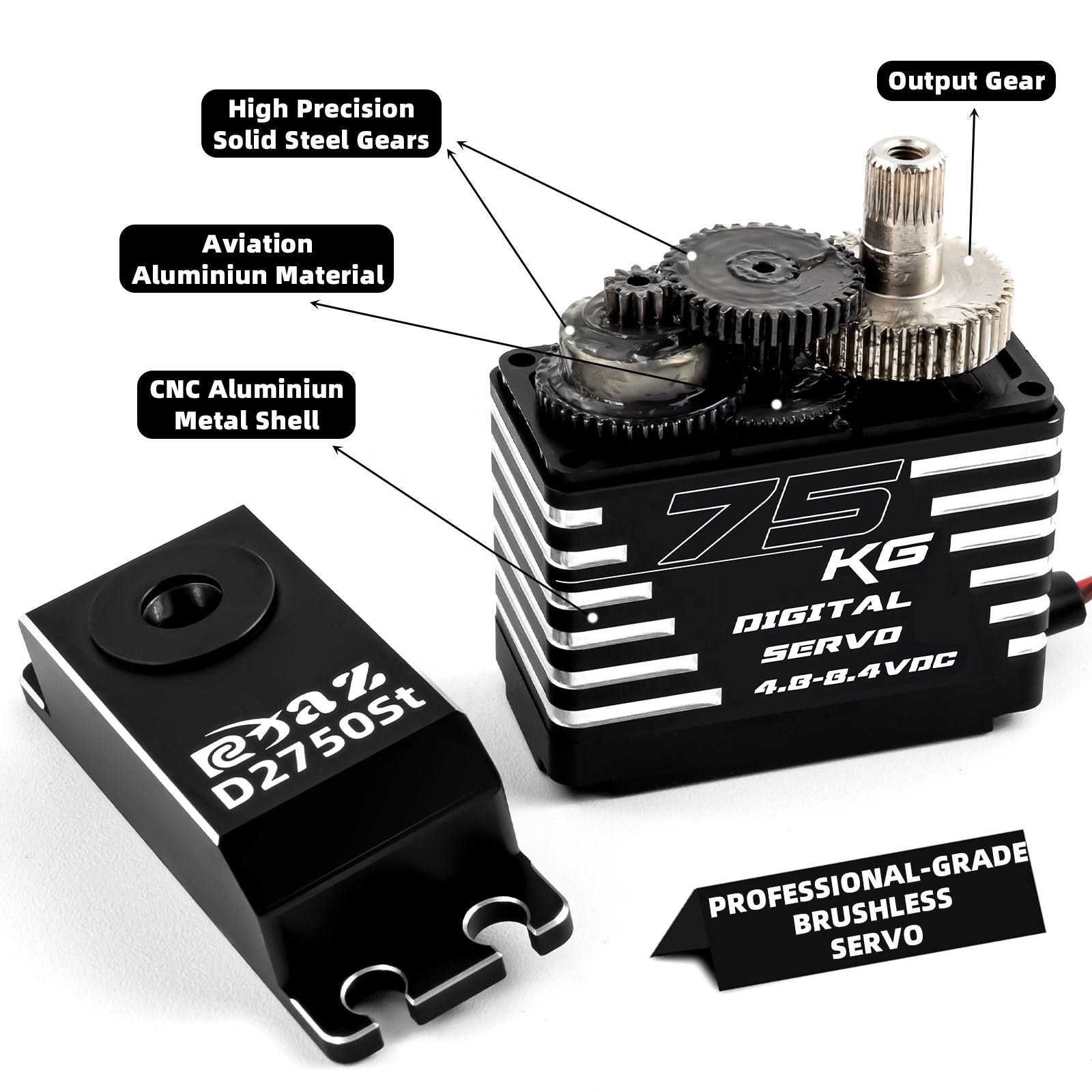

All Metal Construction: Stainless steel gears and a fully CNC machined aluminum alloy casing, providing low noise operation and lightweight design. Equipped with double ball bearings.
High Voltage Capability: Supports high voltage up to 8.4V, recommended for use with 2S batteries, with a working voltage range of DC 4.8 to 8.4V, high operational efficiency. 4. High Servo: With a maximum of 78kg at a high operating voltage of 8.4V, this waterproof steering servo is capable of handling heavy loads. 5. 180 Degree Control Angle: Incorporates a precise potentiometer, offering advanced linearity and accuracy. With a signal range of 500 to 2500 uSec, the maximum control angle for this servo is 180°±1°.
Specification:

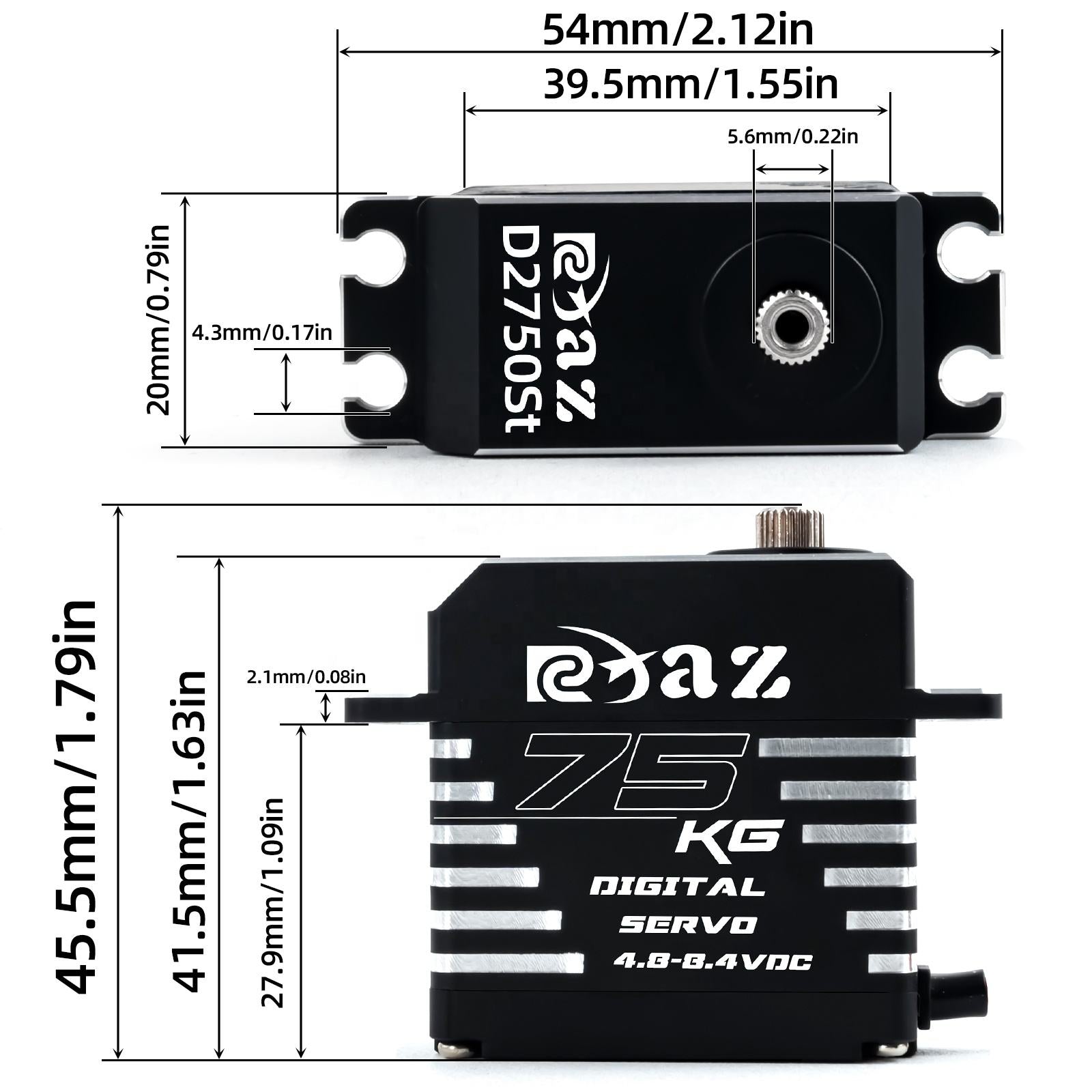

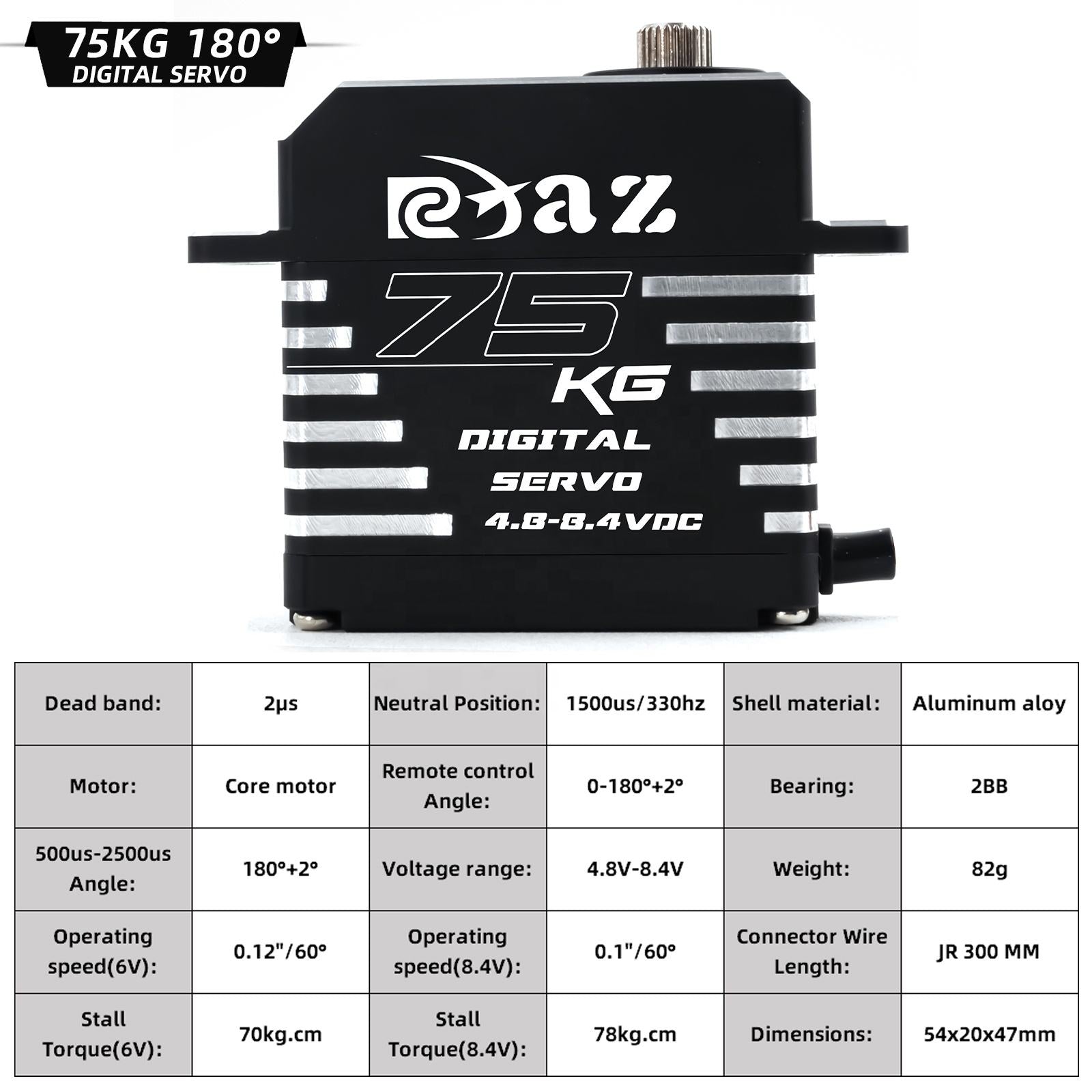

Item Type: RC Digital Servo Set Material: Aluminum Alloy Weight: Approx. 114g/4.0oz Color: Black Servo Size: Approx. 40x20x41mm/1.57x0.79x1.61in Working Voltage: DC 4.8 to 8.4V Stall : 70kg.cm (6V) (972.1 oz/in) 75kg.cm (7.4V) (1041.55 oz/in) 78kg.cm (8.4V) (1083.21 oz/in) Operating Speed: 0.12sec/60° (6V) 0.1sec/60° (7.4V) Operating Angle: 180° Application: Suitable for 1/10, 1/8, 1/5 RC Car, RC Robot, etc.
