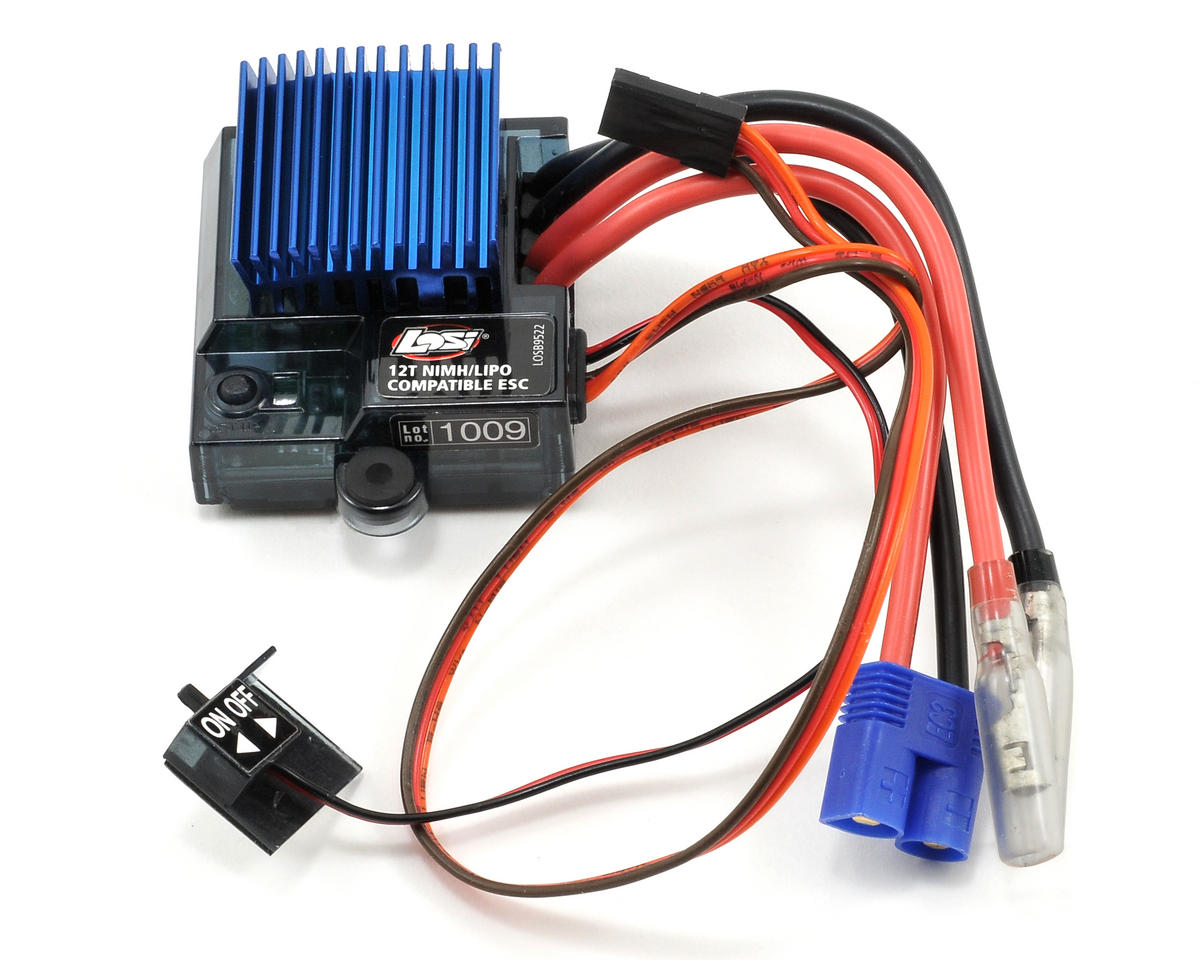

Losi MSC12L 4 Model Forward/Reverse Brushed Motor ESC w/LiPo Cutoff

Specifications:

    Forward: Yes, proportional
    Reverse: Yes, proportional
    Time Delay Brake: Yes
    Input Voltage: 4-cell (4.8 volts) to 6-cell (7.2 volts) DC NimH/NiCd or 2S (7.4 volts) LiPo
    Momentary Peak Current: 1000A Forward and 350A Backwards
    Length: 1.575 in (40mm)
    Width: 1.575 in (40mm)
    Height: 1.063 in (27mm)
    Weight: 1.87 oz (53g)
    BEC Voltage: 5V DC, 1 amp max. at 7.2V
    PWM Frequency: 1kHz
    Overload Protection: Thermal
    Full On Resistance: 0.0014 Ohms Forward and 0.0028 Ohms Backwards

LOSB9522  LOSB 9522
