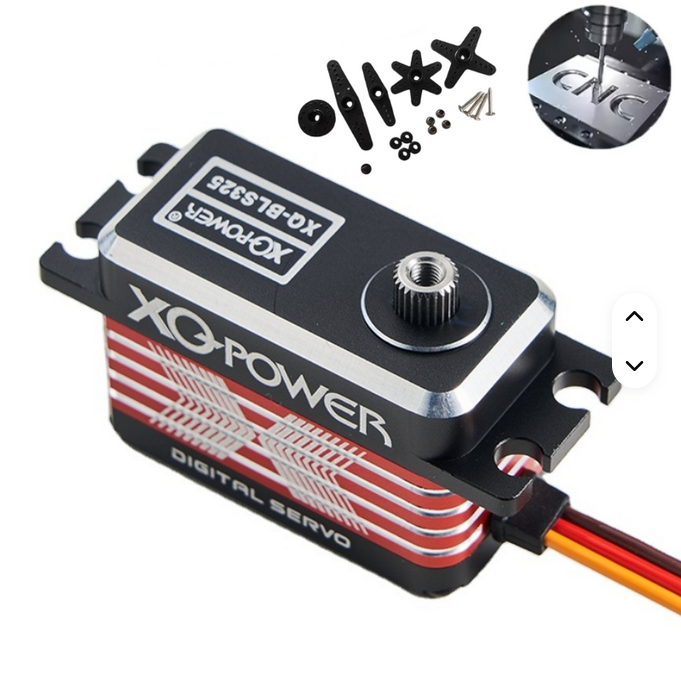

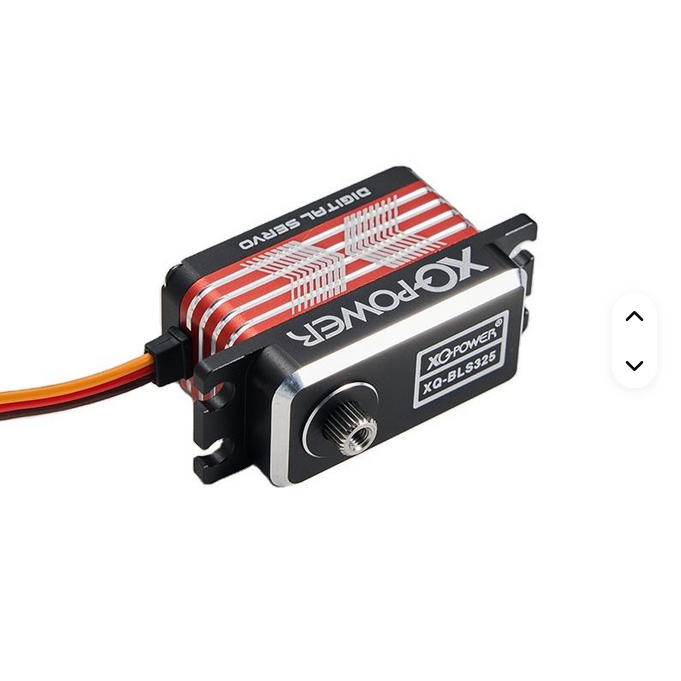

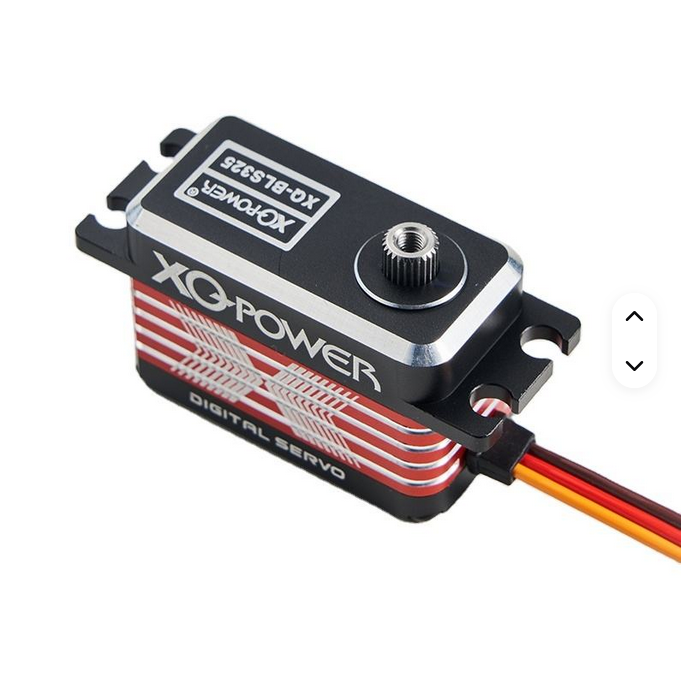

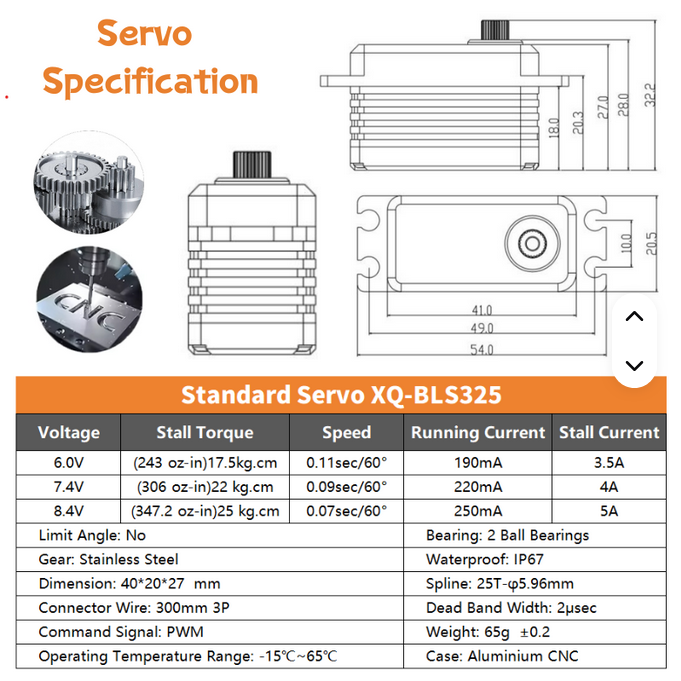

BLS325
|
Size:
|
40*20*27 mm
|
|
Weight:
|
65g ±0.2(2.29oz)no including accessory
|
|
Gear type:
|
Stainless Steel;
|
|
Speed:
|
0.11 sec/60° at（6.0 V）
|
0.09 sec/60° at（7.4 V）
|
0.07 sec/60° at（8.4V）
|
|
Torque:
|
(243 oz-in)17.5kg.cm.at(6.0V)
|
(306 oz-in)22 kg.cm.at(7.4V)
|
(347.2 oz-in)25 kg.cm.at(8.4V)
|
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 65 g (2.29 oz)
Bearing Type: 2 Ball Bearings
Motor Type: Brushless Motor
Gear Type: Stainless Steel
Operating Temperature: -15℃～65℃ (5℉～149℉)
Storage Temperature: -20℃～70℃ (-4℉～158℉)
Neutral Position: 1500 µsec
Size: 4120.528.5 mm (1.61×0.81×1.12 in)
Output Force Shaft: 25T-φ5.96 mm (25T-φ0.235 in)
Servo Line: 300mm 3P
Command Signal: PWM
Amplifier Type: Digital Controller
Pulse Width Range: 700～2300 µsec
Running Degree: 96° (when 1000～2000 µsec, customizable)
Dead Band Width: 2 µsec
Rotating Direction: CCW (when 1000～2000 µsec)
Splash Water Resistance: Yes
Angle of Limit: No Limit
Servo Arm: Plastic (POM material)
Case Material: CNC Aluminium
